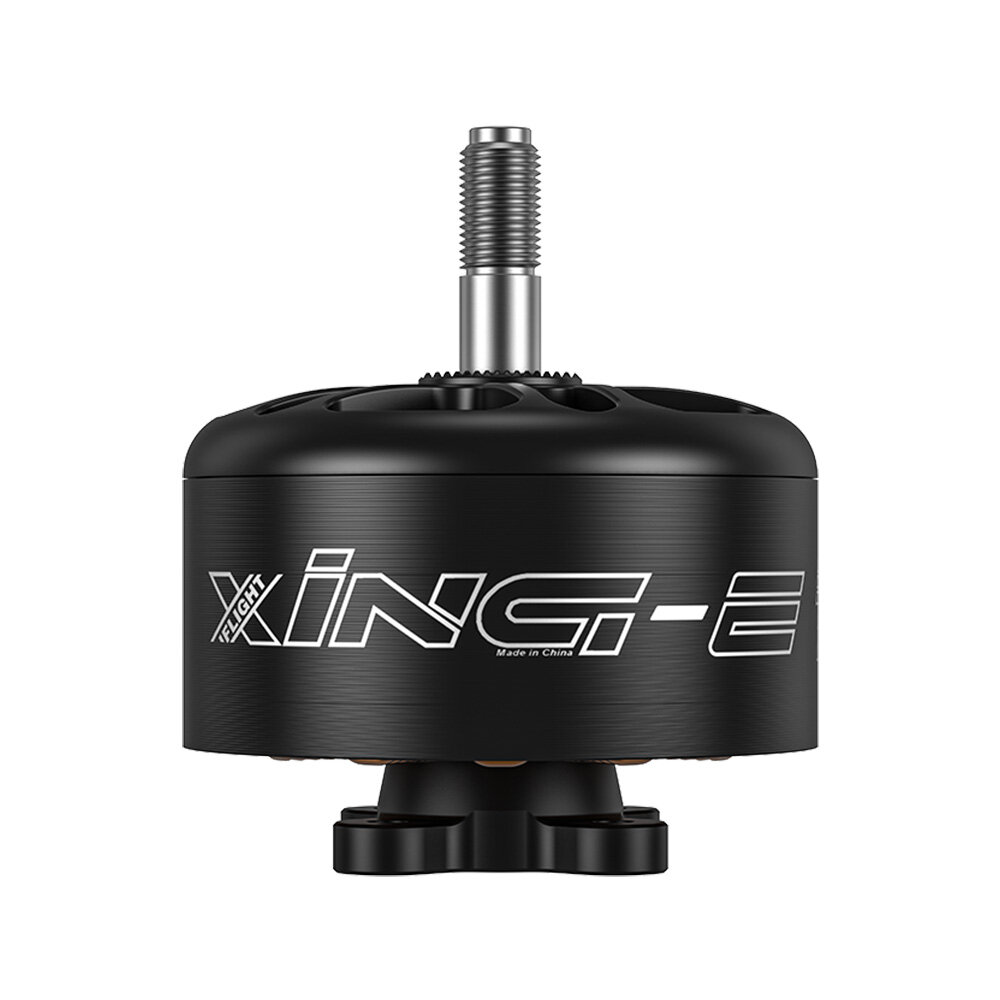

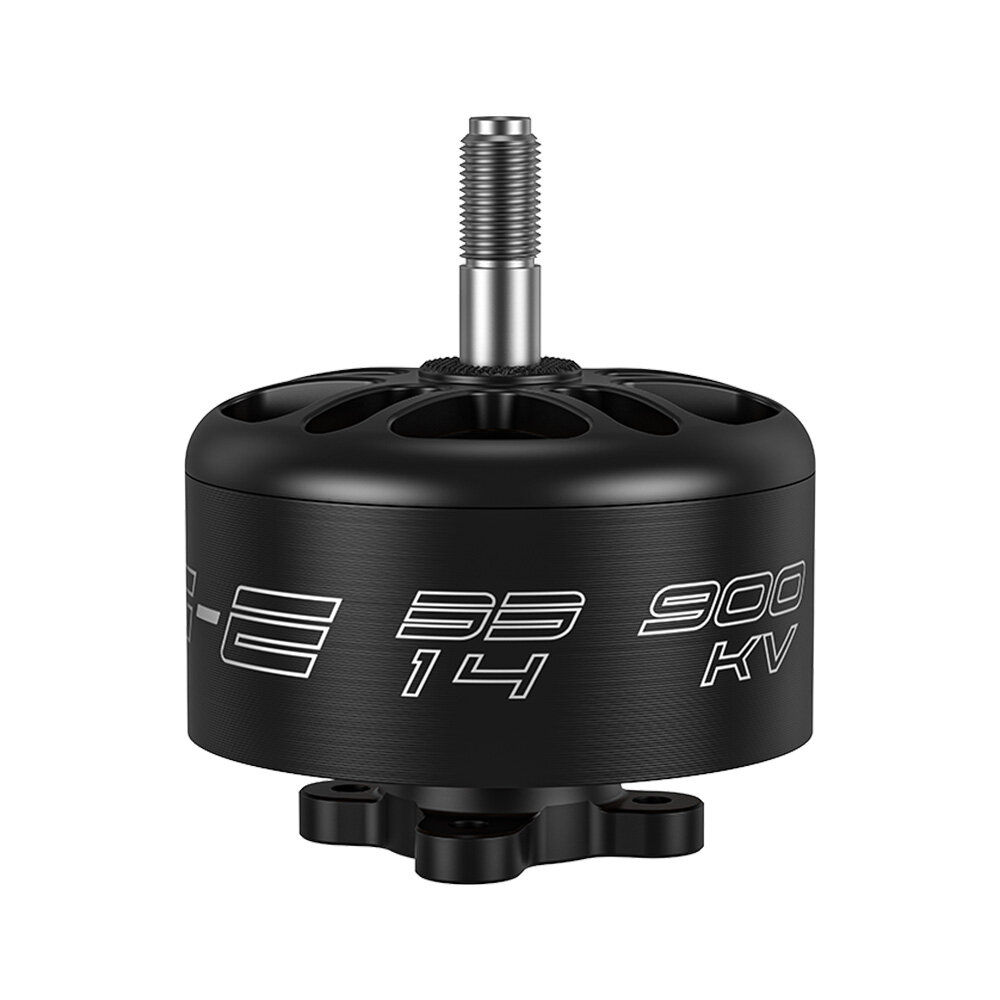

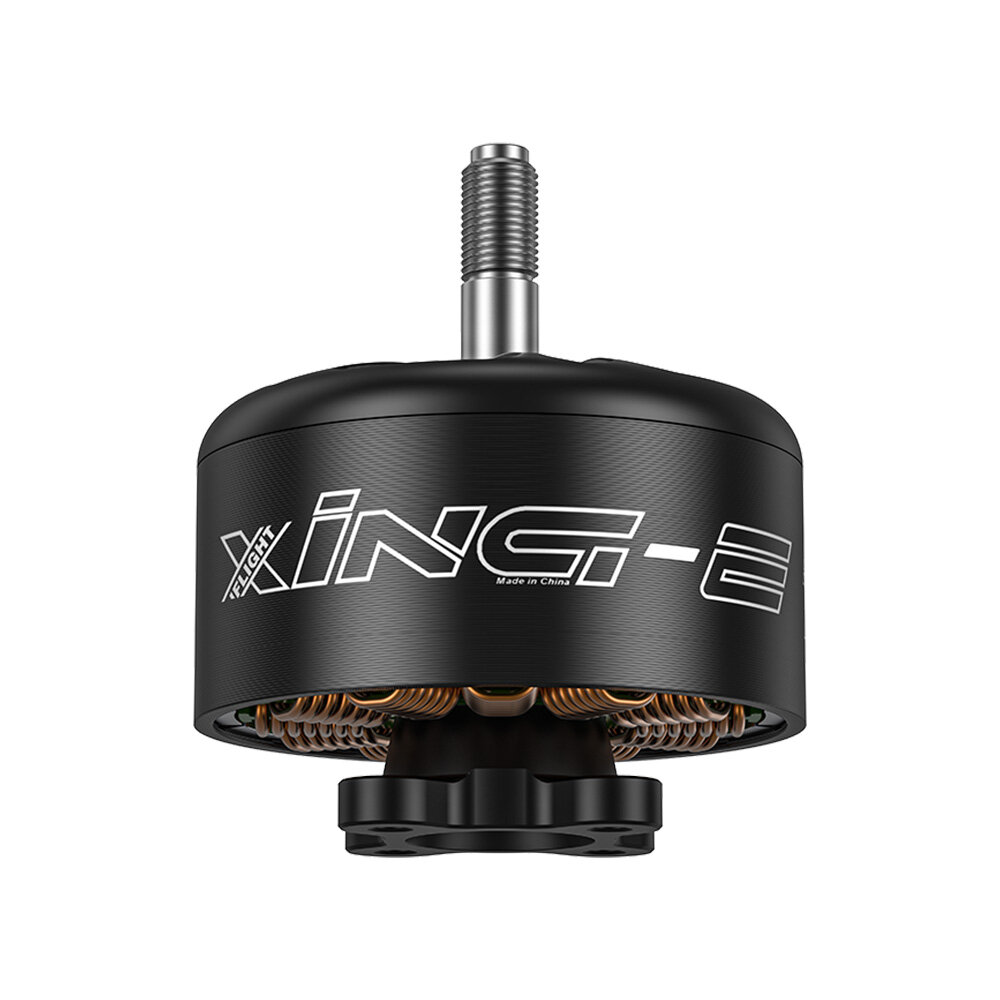

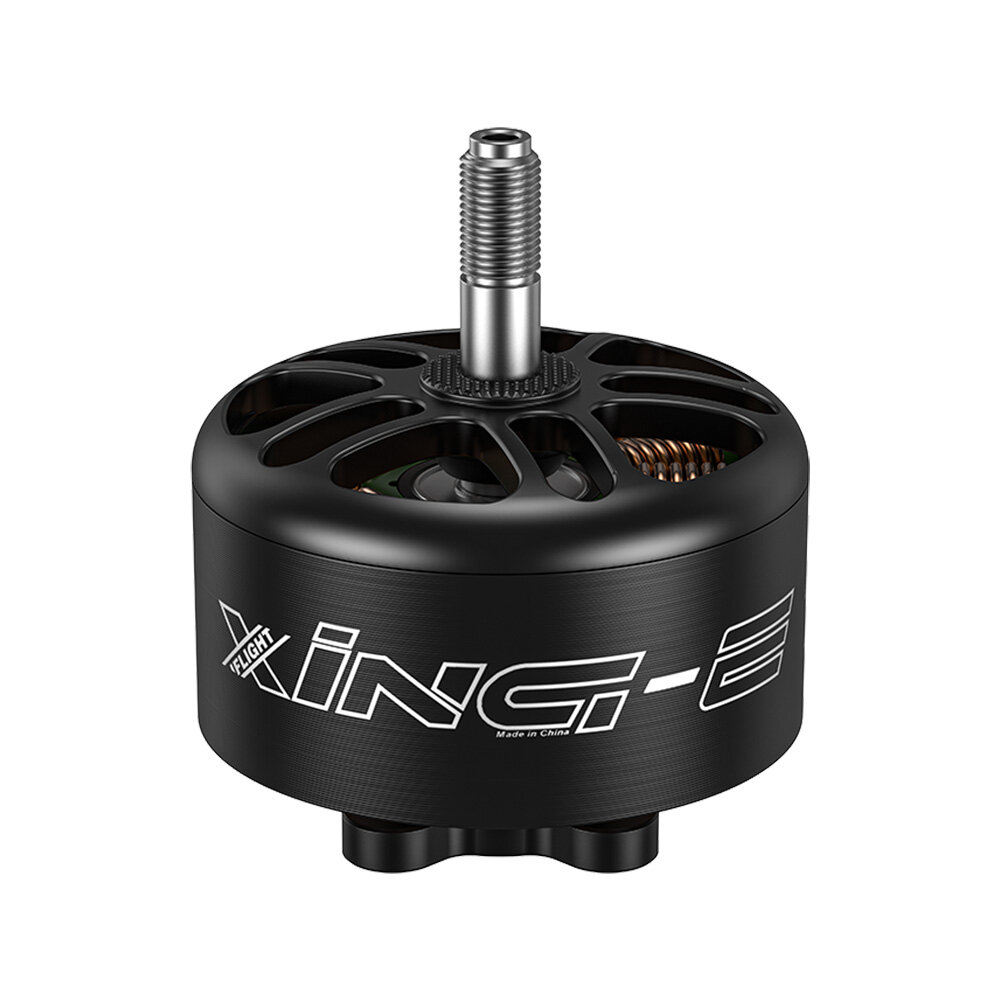

iFlight XING-E 3314 900KV 6S Brushless Motor for Chimera CX10 ECO Long Range FPV RC Racing Drone
3
Direct purchase from the factory
Checkout garantit sikur
Rigal b'xejn
Politika tat-tbaħħir
Politika tar-ritornRigal B'Xejn
Merħba għal Roymall, is-sit professjonali tiegħek għal xiri ta' rigali ta' kwalità għolja. Napprezzaw is-sapport tiegħek u rridu nuruk gratitudni billi noffru rigal b'xejn ma' kull ordni.Politika tat-Tbaħħir
Oġġetti jintbagħtu fi żmien 2-5 ġranet tax-xogħol. Ordni ta' aktar minn $9.9 jintbagħtu b'xejn.1. Politika tar-Ritorn
Oġġetti jistgħu jintirbu sa 40 jum. Oġġetti personalizzati ma jistgħux jintirbu.2.Politika tar-Rifużjoni
Ir-rimi jintirbu bl-istess metodu ta' ħlas oriġinali.
Specifications:
Brand: iFlight
Model: XING-E 3314
KV: 900KV
Weight(included wire): 120g
Dimension: φ38.6*29.8mm
Interphase Resistance: 48.1mu03a9
Input Volts: 24V
Peak Current: 58.48A
Max Watt: 1366.1W
Mounting Holes: 19*19 φ3mm
Shaft Diameter: 5mm
Shaft Protruding Length: 15mm
Lead: 400mm/16AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11* φ5*5
Winding: Single Strand copper winding
Features:
The iFlight XING-E 3314 900KV Motor sets itself apart with its high power-to-weight ratio, contributing to faster speeds and longer flight times.
Its resistant interphase minimizes energy loss, ensuring longer operation.
The use of N52H curved magnets offer higher performance and durability.
The Single Strand copper winding provides high efficiency and the φ11* φ5*5 bearings provide low friction and high durability.
Package Includes:
1 X iFlight XING-E 3314 900KV Brushless Motor
4 X M3*10 Screws
1 X M5 Flange Nut
